Cargo Lift with Full Mesh

Lifting height 3-10m (10-33ft)

Loading capacity 500-5000kg (1102-11023lbs)

Platform size 1.5* 1.5m-3*2.8m (4.9*4.9ft-9.8*9.2ft)

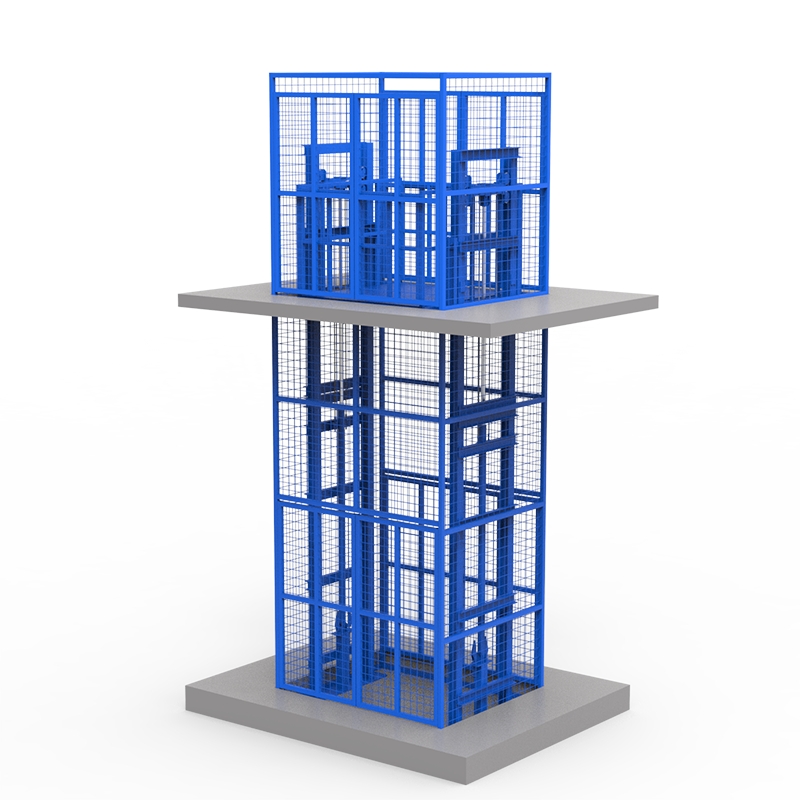

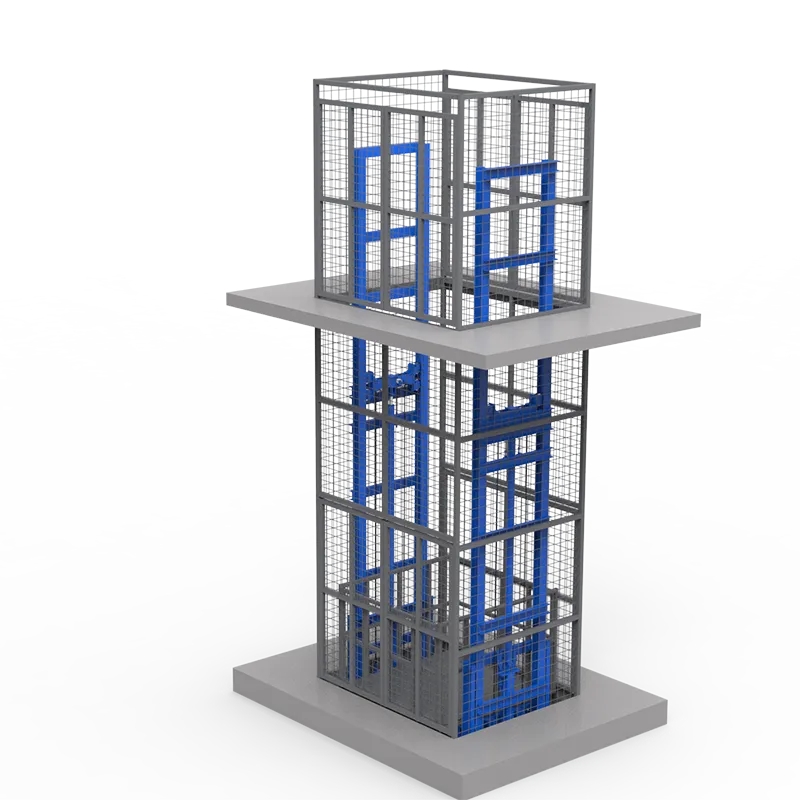

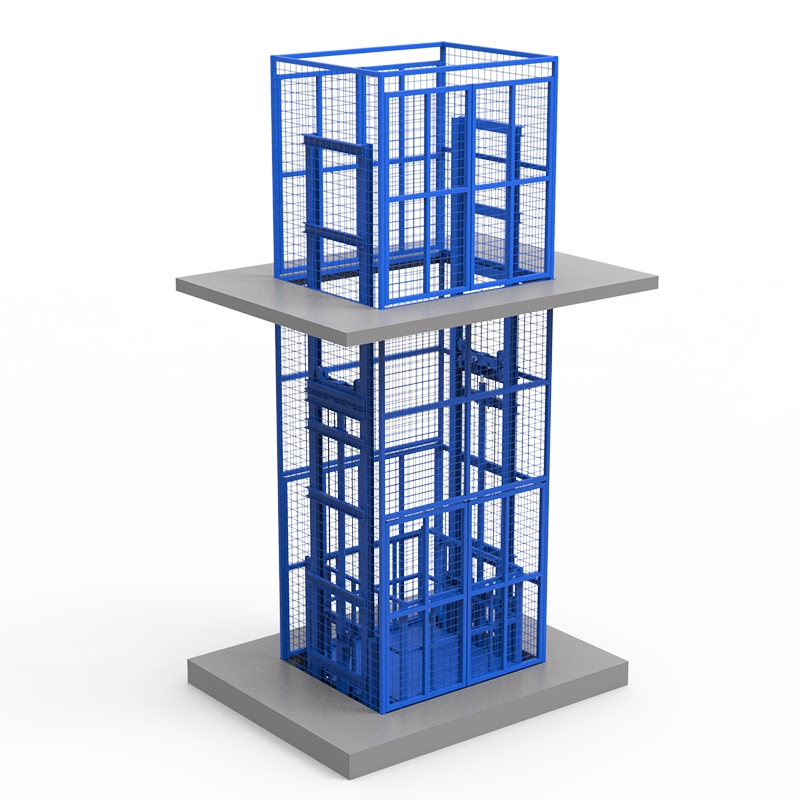

Fully caged cargo lift has a fully steel mesh enclosure outside the goods lift, it provide a physical protection for inside goods and outside persons.

It also comes with landing doors, while others are the same with cargo lift, which  are designed to solve the materials handling problem of moving and transferring goods from ground floor to mezzanine floor.

It features big platform size or big capacity, which can lift cars or forklift with max 20tons capacity.

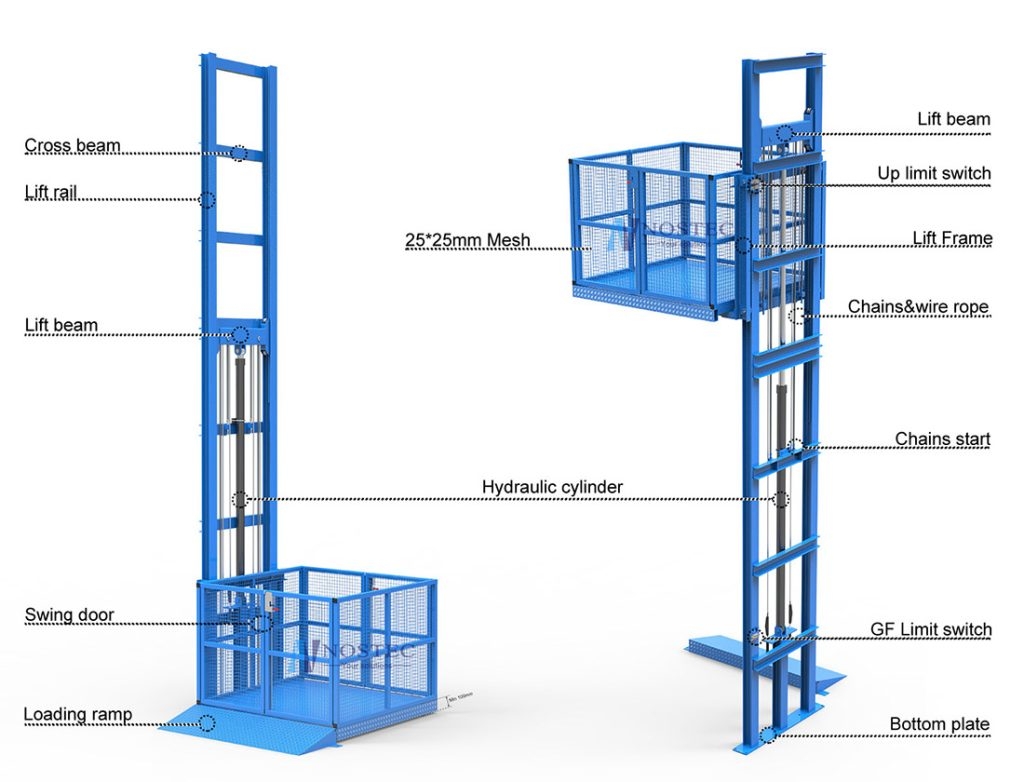

Fully caged cargo lift is covered by steel mesh. This kind of goods lift is well suited for multi-level applications with goods fully enclosed in a protective mesh shaft. The reliable chain drive lifting system has been designed for the tough duty and providing long and trouble-free service life. Specific solution can be provided on receipt of request. Just let us know your requirements like lifting height, capacity, platform size etc. Our technical sales team can offer you professional lifting solution accordingly.

Laser cutting and powder coating

Upper and lower landing limits

Upper final limit

24V DC control circuit

Mitsubishi PLC Control

Door interlock

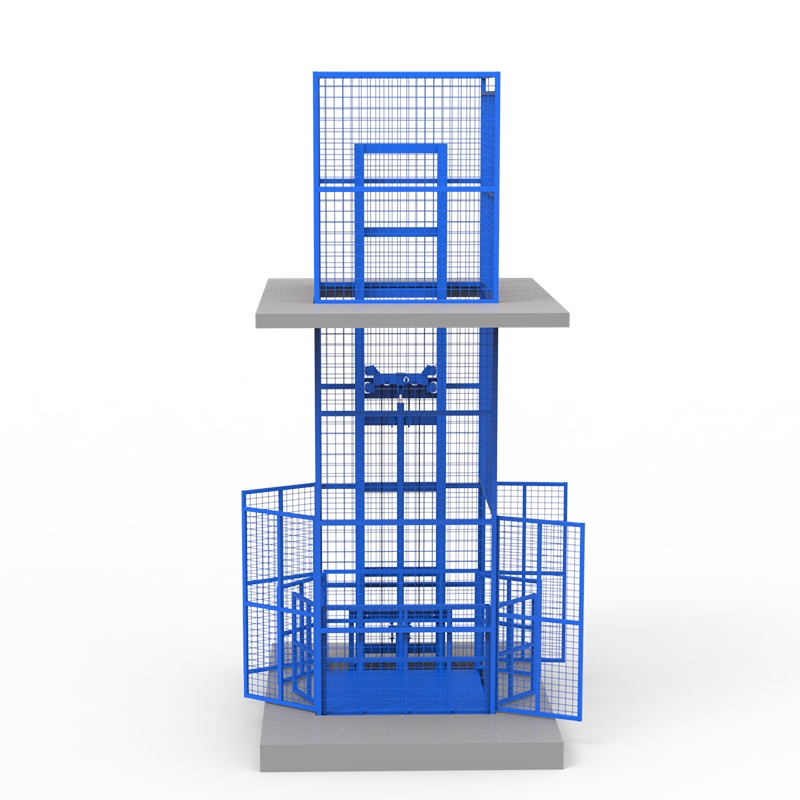

Outwards opening single gates.

Push to run controls

Emergency stop buttons.

Emergency descend valve

5 year warranty on the structural components

1 year on the electrical components

Fully Caged Cargo Lift

Better Protection, Better Performance! Nostec lift can provide rich options for cargo lift, such as mesh enclosure, floor mesh, ground installation if site not available for pit, roller shutter door and safety, electric lock, and motor cover box for pump station and control.

Standard Features

Standard configuration comes with lift

Available Options

Better Protection, Better Performance! Nostec lift can provide rich options for cargo lift, such as mesh enclosure, floor mesh, ground installation if site not available for pit, roller shutter door and safety, electric lock, and motor cover box for pump station and control.

Cargo Lift Applications

Fully caged cargo lift is commonly used in industrial, commercial, and institutional settings where there is a need to transport larger and heavier items, such as machinery, materials, and goods, especially the higher packages, small package cargos, and other places of place of people gathering, such as in warehouses and Distribution Centers, Retail Stores, Hotels, Residential Buildings, factories and Industrial Plants.

High Grade Parts Ensure High Quality of Fully Caged Cargo Lift

All the parts we use are first-class quality and well-known brands. The parts are a standard model with item code, which are very convenient to be replaced. Delivery is also fast for parts.

Fully Caged Cargo Lift is widely used in factory and warehouse. It offers a safer way to transfers goods among mezzanines, basements, and any levels in multi-storied buildings, saving time and labor.
