Four Post Cargo Lift
Four Post Cargo Lift
Lifting height 2.4-6.5m (7.9-21.3ft)
Loading capacity 1000-5000kg (2204-11023lbs)
Platform size 2* 2m (6.5*6.5ft)
4 post warehouse goods lifts are designed to solve the materials handling problem of moving and transferring goods from ground floor to mezzanine floor, It features big platform size or big capacity, which can lift cars or forklift with max 20tons capacity.
High Grade Parts Ensure High Quality of Four post cargo lift
All the parts we use are first-class quality and well-known brands. The parts are a standard model with item code, which are very convenient to be replaced. Delivery is also fast for parts.
Laser cutting and powder coating
Upper and lower landing limits
Upper final limit
24V DC control circuit
Mitsubishi PLC Control
Door interlock
Outwards opening single gates.
Push to run controls
Emergency stop buttons.
Emergency descend valve
5 year warranty on the structural components
1 year on the electrical components

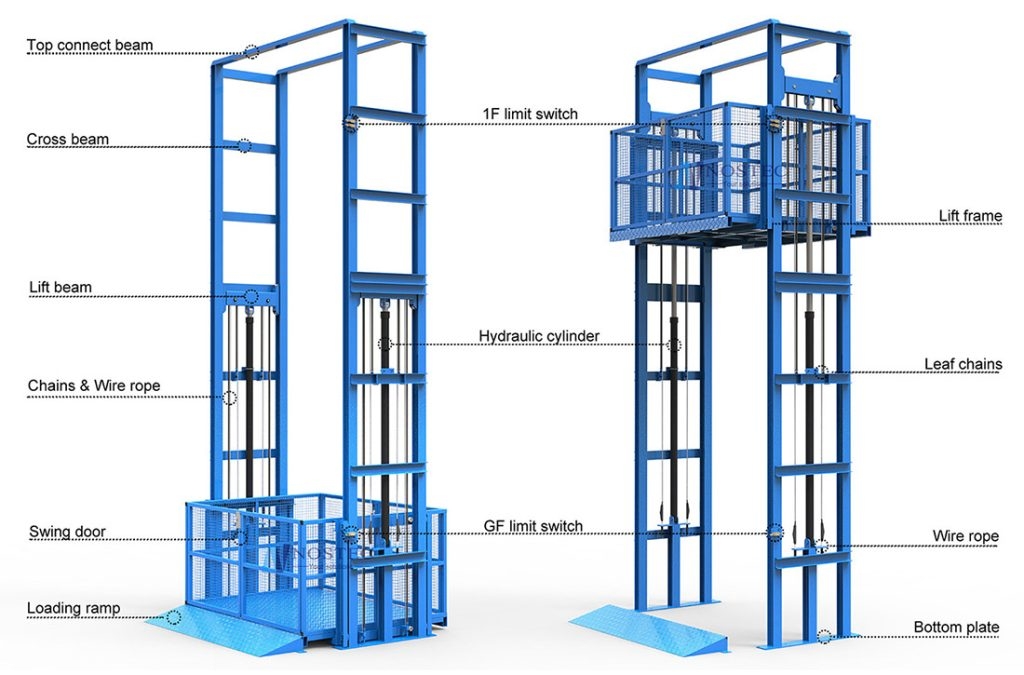

4 Post Cargo Lift Solution
4 post warehouse goods lifts are designed to solve the materials handling problem of moving and transferring goods from ground floor to mezzanine floor, It features big platform size or big capacity, which can lift cars or forklift with max 20tons capacity.
Standard Features
Four-post Cargo Lift is widely used in indoor or outdoor places of the buildings and warehouses to lift goods or pallets between floors.
Four Post Cargo Lift Specifications
| Model | Load Capacity | Platform Size | Travel Height | Pit Depth | Dimension |
|---|---|---|---|---|---|
| LRL3-2.4 | 3000kg | 2*2m | 2.4m | 350mm | 2.8*2.16*4.9m |
| LRL2-5 | 2000kg | 2.1*1.2m | 5m | 350mm | 2.85*1.36*7.5m |
| LRL1-4.5 | 1000kg | 2.1*1.5m | 4.5m | 350mm | 2.75*1.65*7m |
| LRL5-6.5 | 5000kg | 2.2*1.6m | 6.5m | 350mm | 3*1.75*9m |
| LRL3-6.5 | 3000kg | 2.2*1.9m | 6.5m | 350mm | 2.95*2.05*9m |
| Four-post Cargo Lift is customizable in loading capacity, platform size and travel height. | |||||
