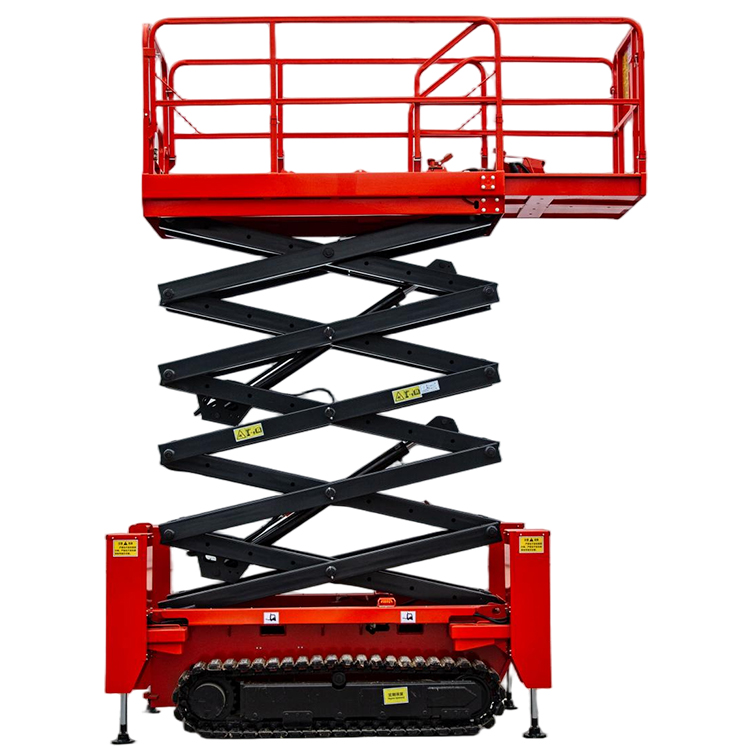

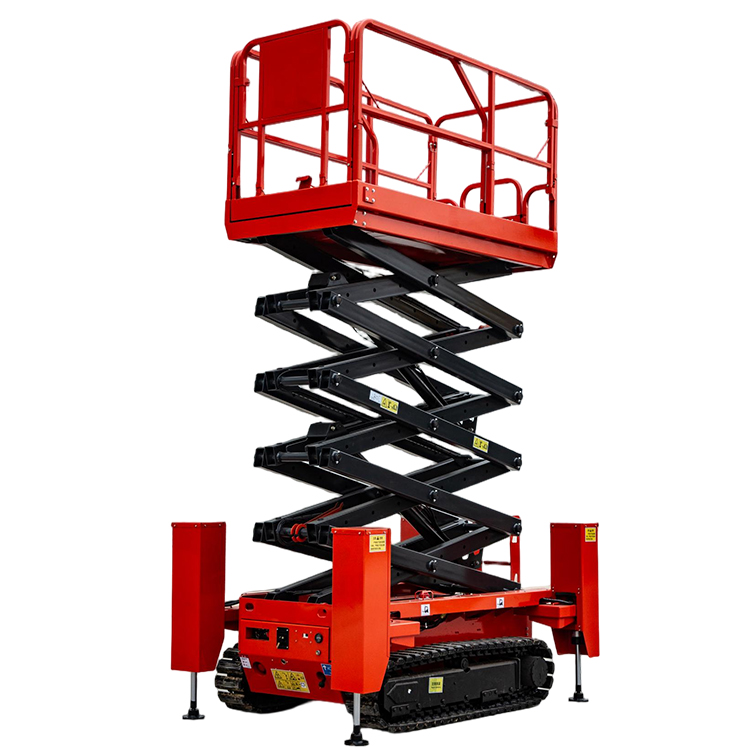

Crawler Scissor Lift
Hanslot Crawler Scissor Lift is a high-performance aerial work platform meticulously engineered to redefine efficiency, safety, and adaptability across indoor and outdoor high-altitude operations. Integrating cutting-edge technology with user-centric innovation, this series effectively addresses the inherent limitations of traditional aerial equipment—including poor terrain adaptability, cumbersome operation, and restricted working scope—delivering a seamless, reliable solution for industries requiring safe, efficient elevated work.
Core Performance & Technical Advantages
The superior performance of the Hanslot Crawler Scissor Lift is underpinned by advanced components and precision engineering, ensuring consistent, stable operation even in the most demanding working environments.
1. Exceptional Terrain Adaptability with Crawler Chassis
Equipped with a high-strength crawler travel system, the Hanslot Crawler Scissor Lift offers off-road capabilities that outperform traditional wheeled scissor lifts. Its crawler tracks feature a high friction coefficient and robust driving force, enabling effortless traversal of uneven, soft, or rough terrains—such as mud, grass, gravel, and unfinished construction sites—without sinking or jamming. Boasting a maximum ground clearance of 146mm (varies by model) and a 40% gradeability, the lift ascends steep slopes smoothly, making it ideally suited for outdoor operations in complex environments where wheeled equipment is impractical. Additionally, the wide crawler tracks (300mm in width for large models) minimize ground pressure, safeguarding delicate surfaces such as lawns and indoor flooring from damage.
2. Powerful & Efficient Electric Drive System
The Hanslot Crawler Scissor Lift adopts a fully sealed permanent magnet synchronous drive motor, delivering rapid travel speeds, strong power output, and exceptional energy efficiency. With an IP67 protection rating for the travel motor, the lift exhibits excellent dust and water resistance, ensuring stable operation under harsh weather conditions. Its pure electric drive design achieves zero emissions and ultra-low noise levels, making it suitable for indoor applications (e.g., warehouse maintenance, shopping mall renovation) and noise-sensitive areas (e.g., residential districts, hospitals). Powered by a high-capacity lithium iron phosphate battery with a maximum total capacity of 8kWh, the lift supports fast charging and enables 8 hours of continuous operation on a single charge—effectively enhancing work efficiency and reducing downtime for recharging. Furthermore, the integrated high-power charger is compatible with a 220V household socket, facilitating convenient, on-demand charging anywhere.
3. Intelligent Safety Protection & Stability

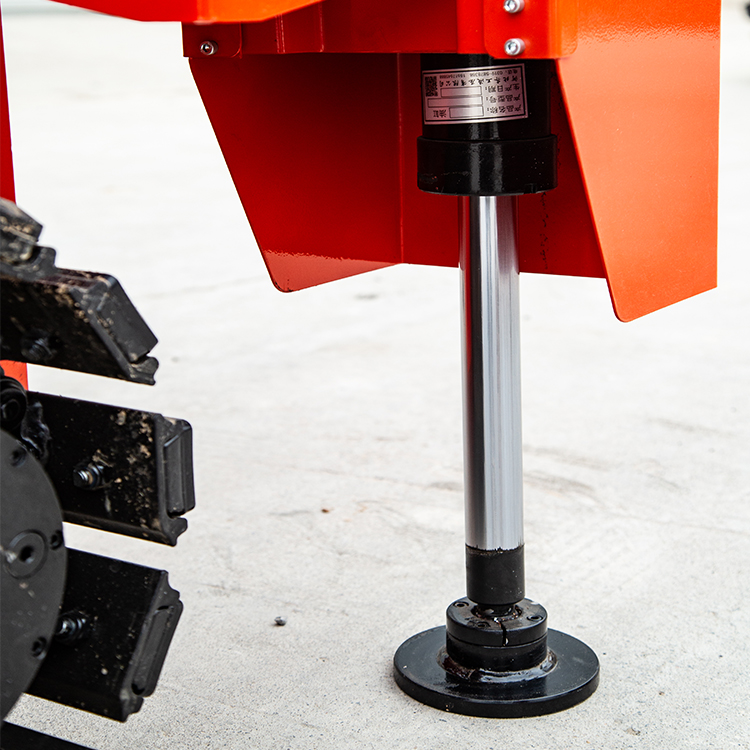

Safety is paramount in the design of the Hanslot Crawler Scissor Lift, which is equipped with a comprehensive safety protection system to ensure operator and equipment safety. The one-key outrigger leveling function automatically adjusts the frame to a horizontal position, while hydraulic outriggers significantly enhance stability during elevated operations. Operators can also independently control individual outriggers to meet the requirements of special working conditions. Standard safety features include an emergency descent system, tilt protection sensor, safety rail, platform self-locking door, motion alarm, fault diagnosis system, and automatic braking—providing multi-layered protection against potential hazards. The lift also supports safe movement while the platform is elevated, allowing operators to reposition the machine without lowering the platform, thereby further improving work efficiency.
4. User-Friendly Design & Easy Maintenance
The Hanslot Crawler Scissor Lift features a human-centric design that prioritizes operator comfort and operational convenience. Precise closed-loop control of the permanent magnet synchronous motor parameters ensures smooth, comfortable operation, reducing operator fatigue during extended working hours. Its compact structure and lightweight design (starting from 1890kg) facilitate easy transportation and storage—with a folded height of just 2.01m for select models, enabling access to narrow spaces such as elevators and small warehouses. The drawer-type design and human-machine interactive control system simplify maintenance, allowing technicians to quickly and efficiently access key components (e.g., batteries, motors, hydraulic systems), thereby reducing maintenance time and costs.
Key Technical Parameters
The Hanslot Crawler Scissor Lift offers a comprehensive model range to meet diverse operational requirements, with maximum working heights ranging from 6.5m to 15.8m and load capacities from 230kg to 450kg (varies by model). Below are the core parameters of the main models:
- Maximum Working Height: 6.5m - 15.8m
- Maximum Platform Height: 5.9m - 13.8m
- Load Capacity: 230kg - 450kg
- Travel Speed (Stowed): 2.4km/h - 4km/h
- Turning Radius: 0m (360° in-place rotation)
- Lifting/Lowering Time: 16s/34s - 76s/53s
- Battery Capacity: 48V/160Ah - 48V/300Ah
- Overall Width: 1.3m - 1.6m
- Crawler Size: 250mm×72mm×60mm - 300mm×101mm×48mm
Wide Application Scenarios
With its versatile performance and strong adaptability, the Hanslot Crawler Scissor Lift is widely utilized across various industries and scenarios, including but not limited to:

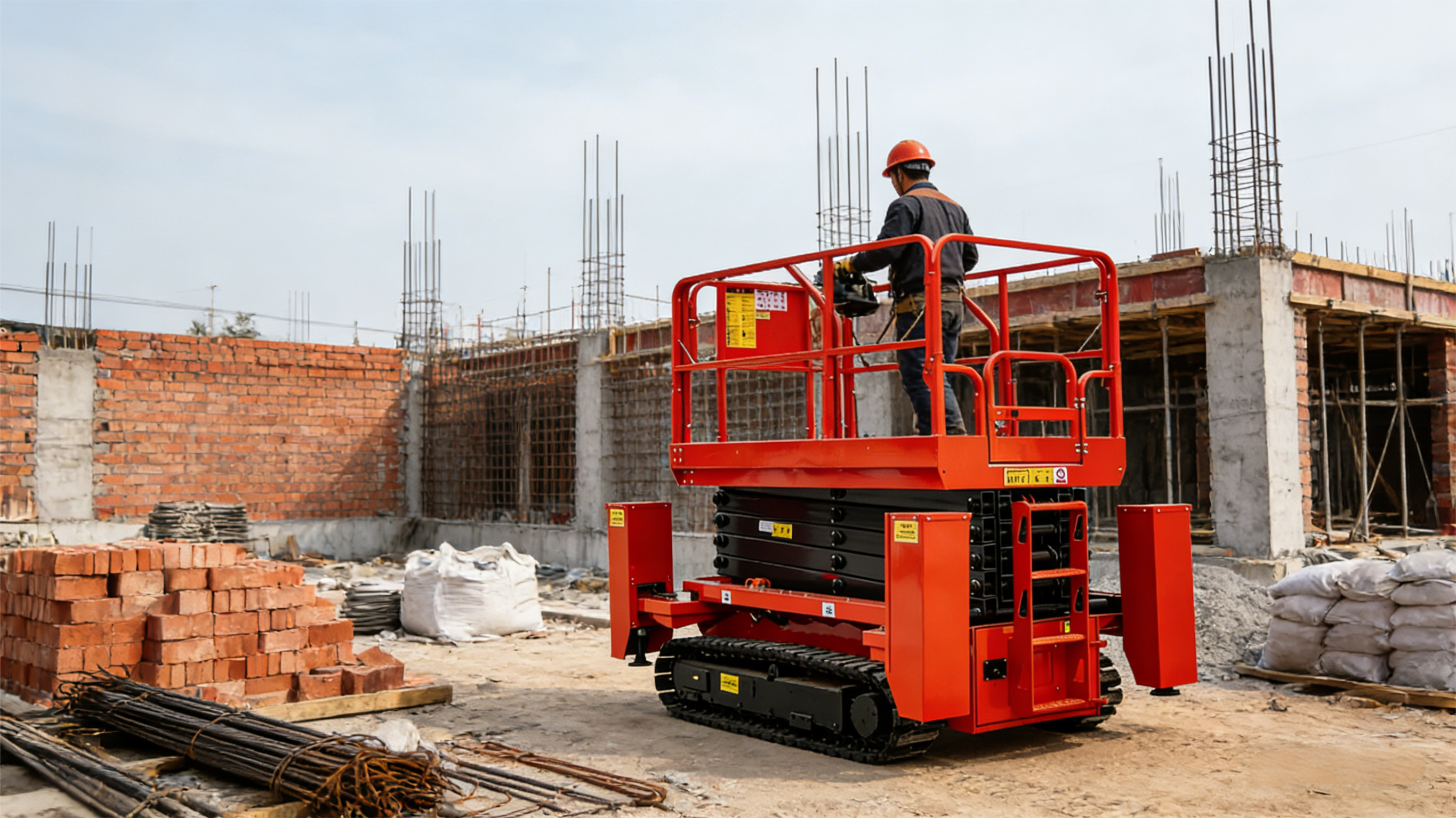

- Construction Industry: High-altitude installation, decoration, painting, and maintenance of buildings, bridges, and tunnels.
- Outdoor Maintenance: Street lamp repair, greening pruning, power line maintenance, and billboard installation.
- Indoor Operations: Warehouse inventory management, shopping mall decoration, factory equipment maintenance, and theater stage arrangement.
- Special Environments: Muddy construction sites, sandy areas, grasslands, and other uneven or soft terrain operations.
Why Choose Hanslot Crawler Scissor Lift?
Hanslot has consistently adhered to the principle of "quality first, customer-oriented." Each crawler scissor lift undergoes rigorous quality inspection and performance testing prior to delivery, ensuring reliable quality and stable operation. Compared to similar products on the market, the Hanslot Crawler Scissor Lift offers distinct advantages in terrain adaptability, energy efficiency, safety, and maintenance convenience—helping customers reduce operational costs, improve work efficiency, and ensure operational safety.
Whether you require a compact model for narrow indoor spaces or a high-capacity unit for complex outdoor terrain, the Hanslot Crawler Scissor Lift can provide a customized solution tailored to your specific needs. Choose Hanslot, and leverage professional aerial work equipment to empower your projects.
