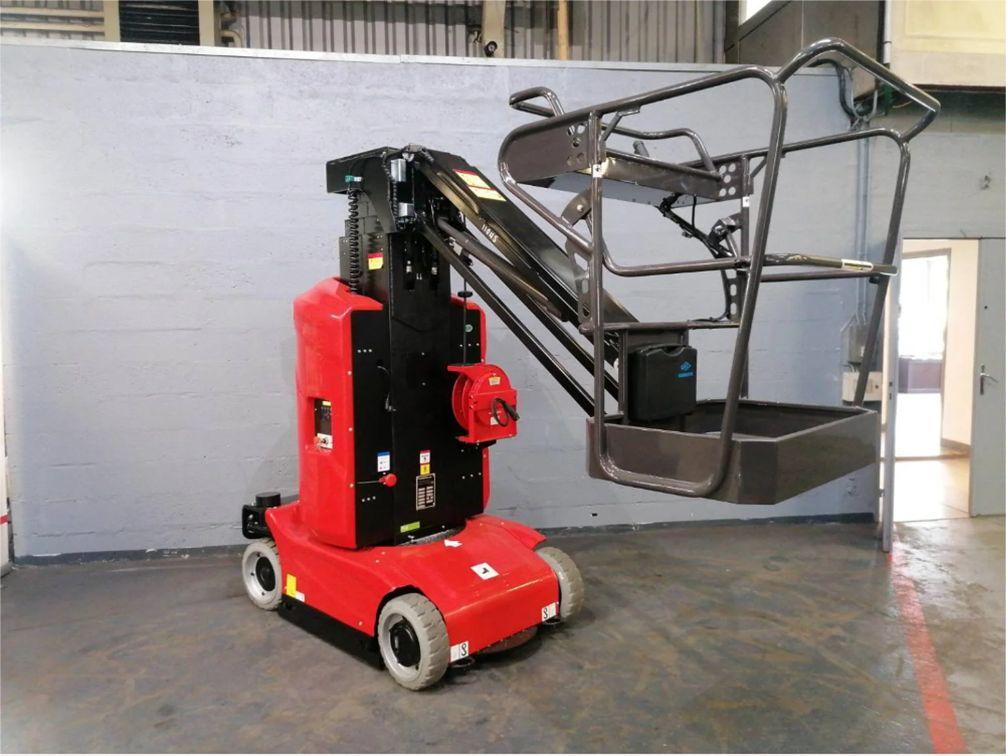

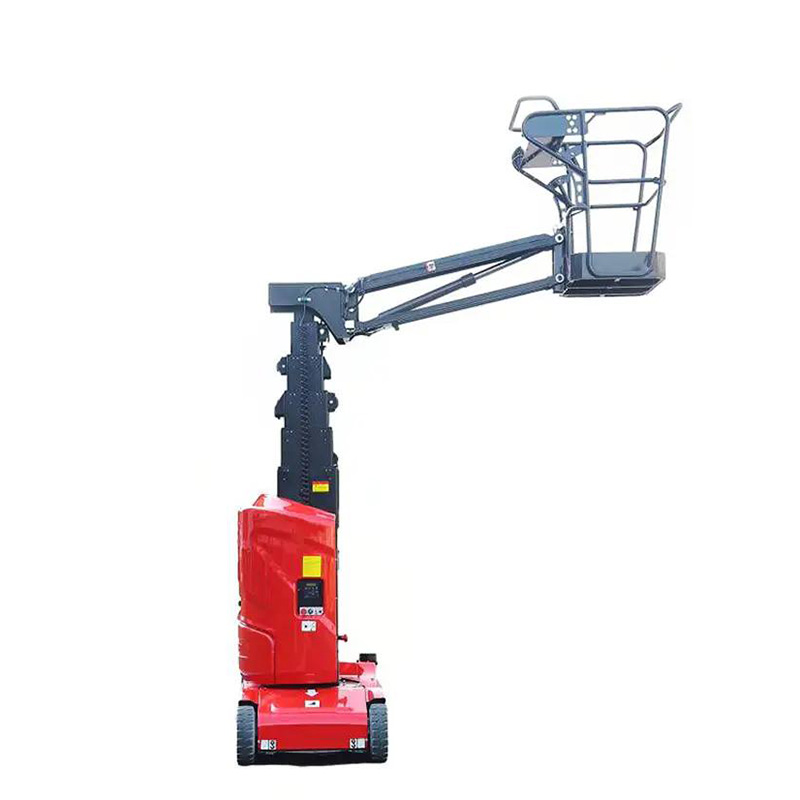

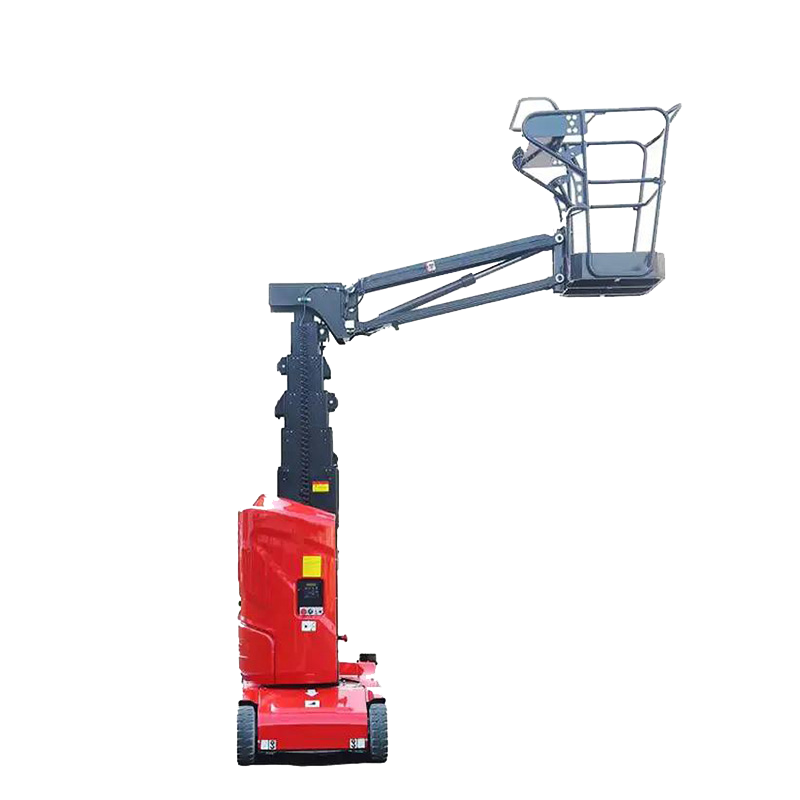

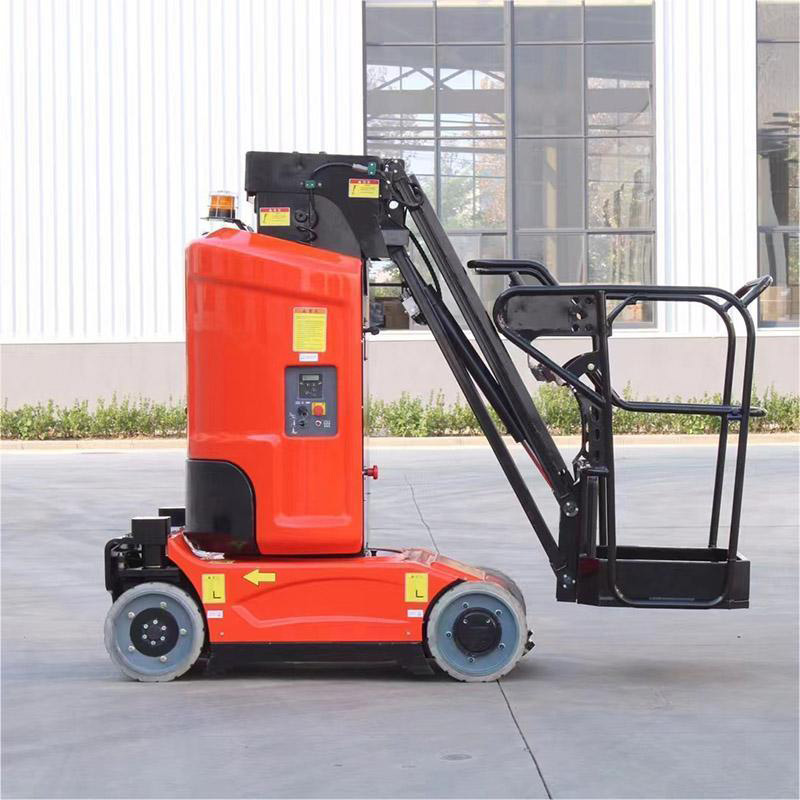

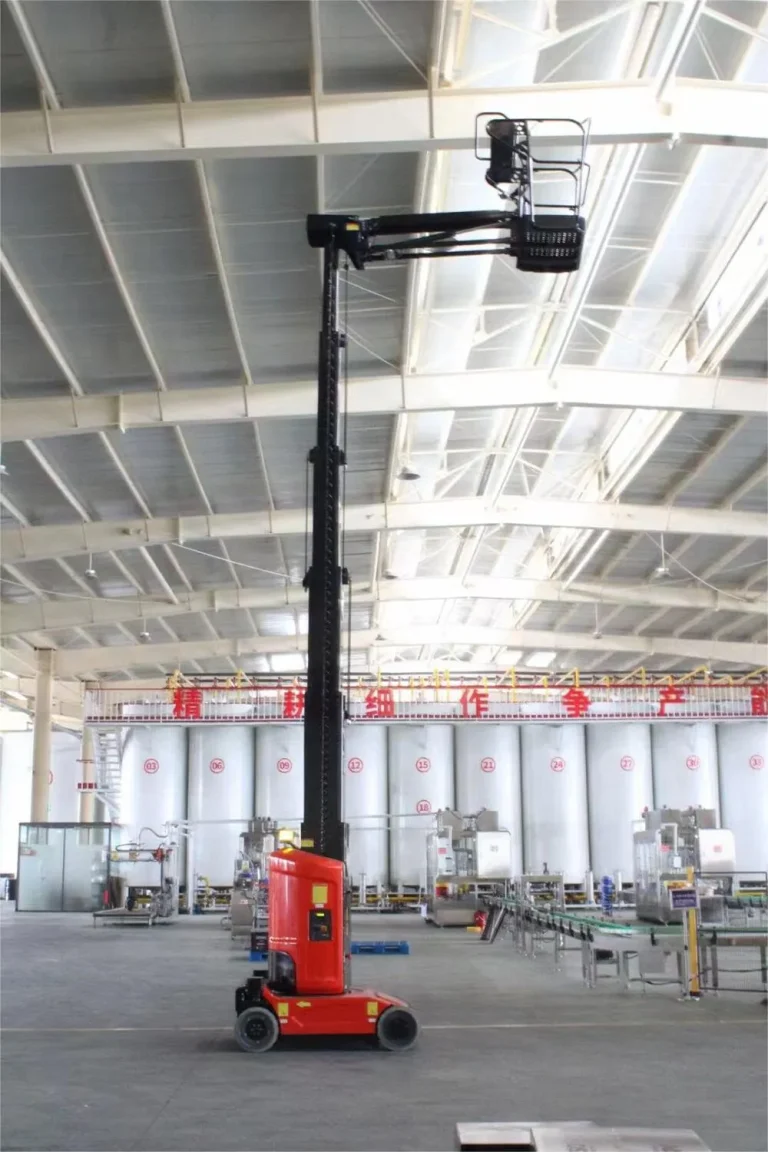

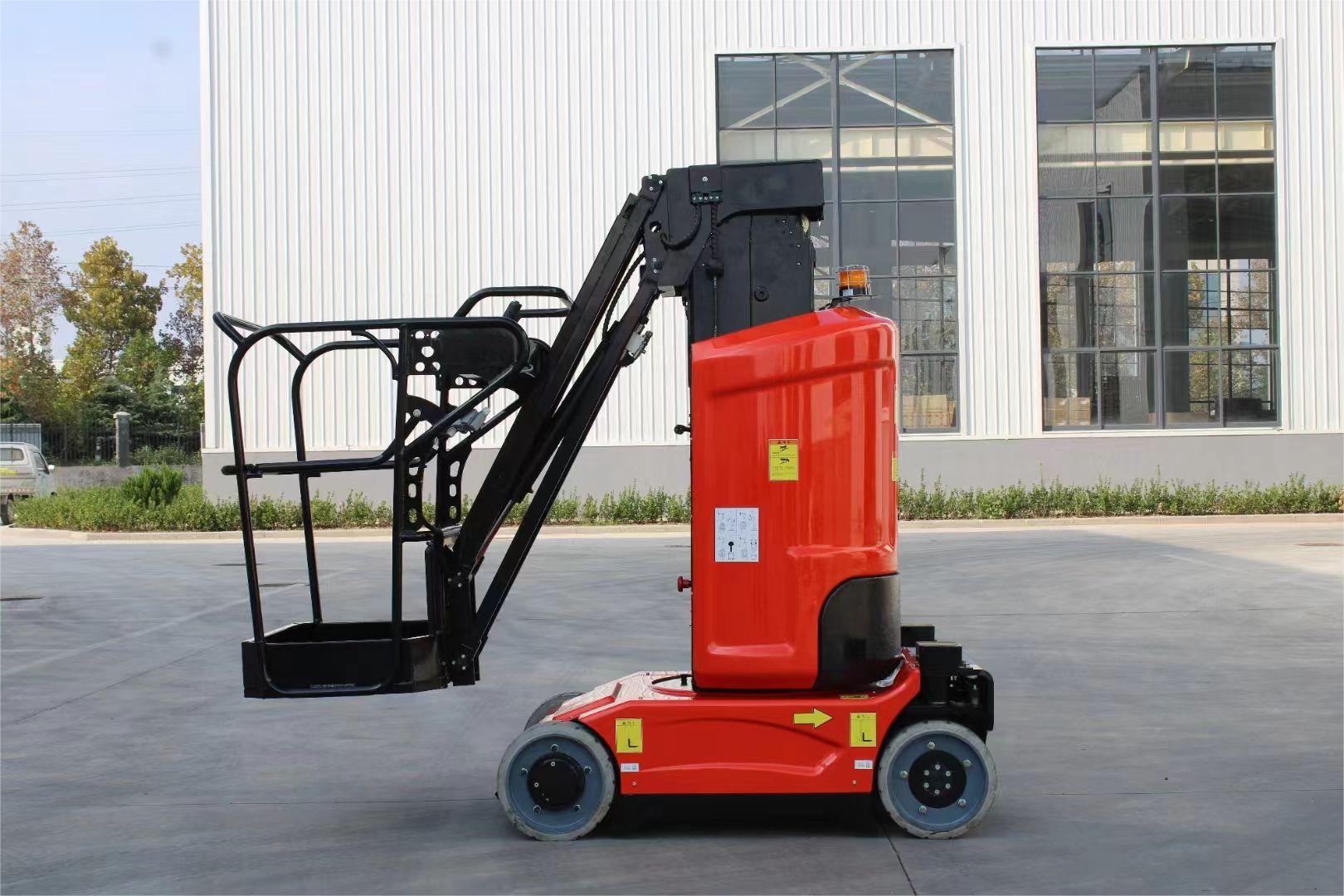

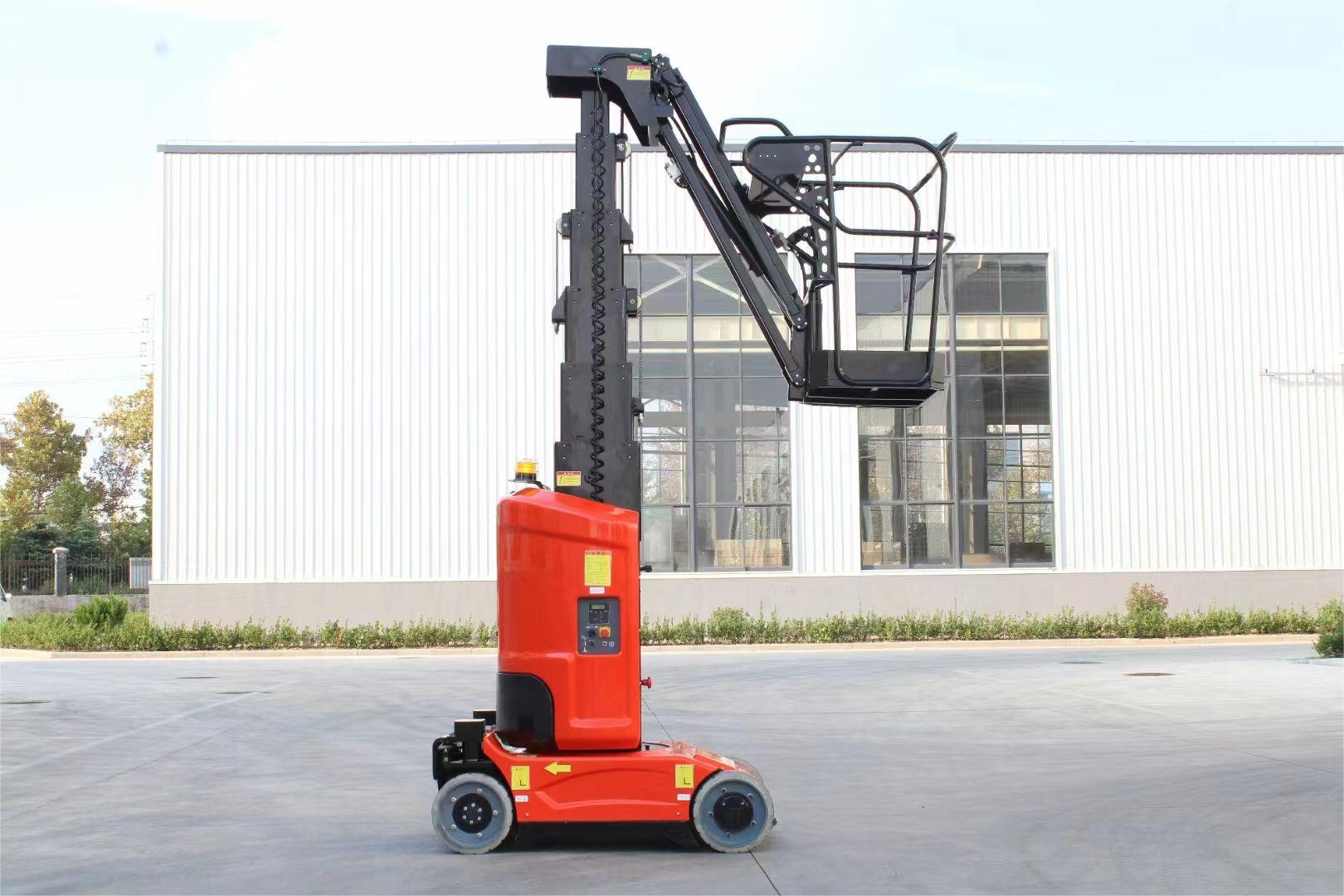

Vertical mast boom lift
This drivable mast boom lift is also called self propelled boom lift. with the agility and their compact dimensions, straight elevation, Nostec mast lifts are extremely easy to drive in the tightest spaces and narrow aisles.
Standard Features
1.Proportional controls
Vertical mast boom lift Application

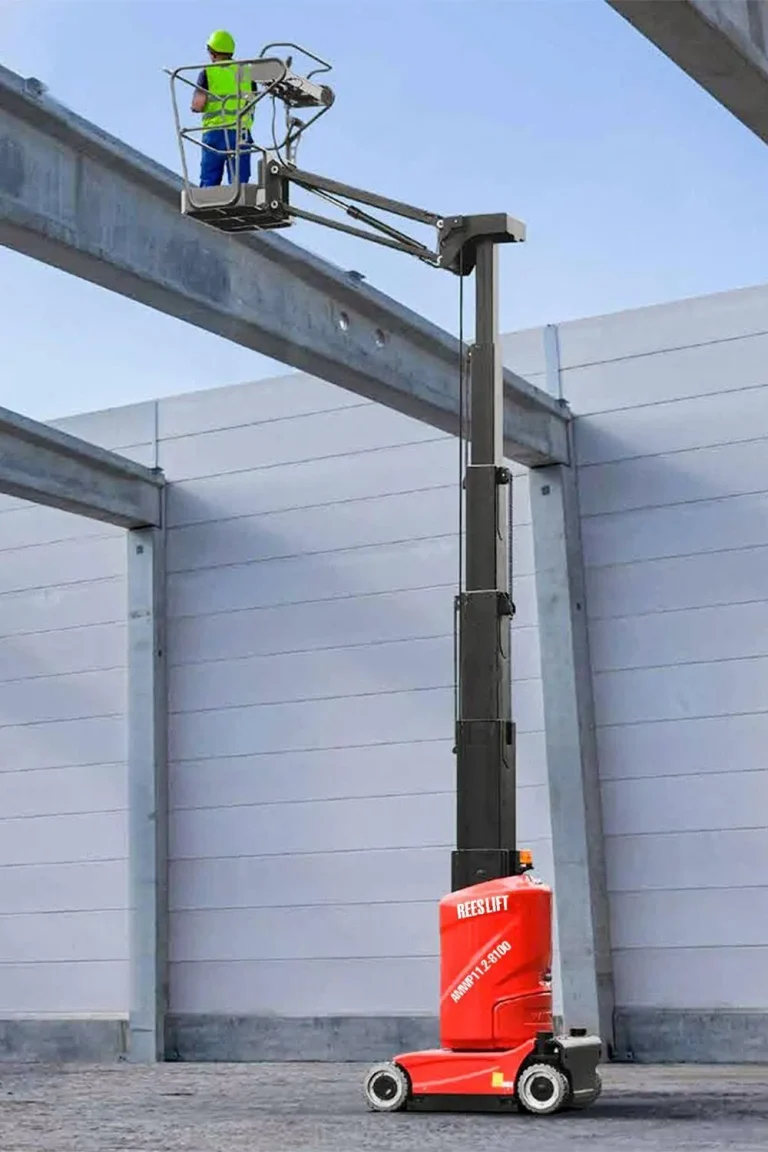

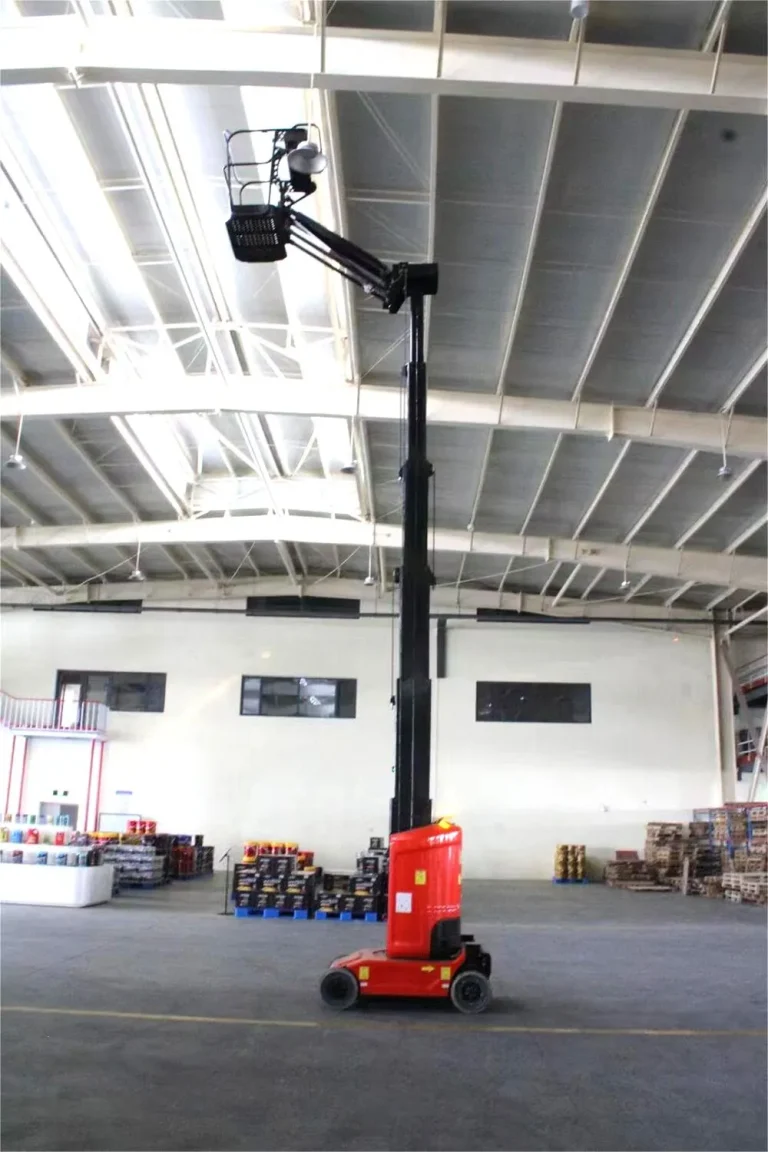

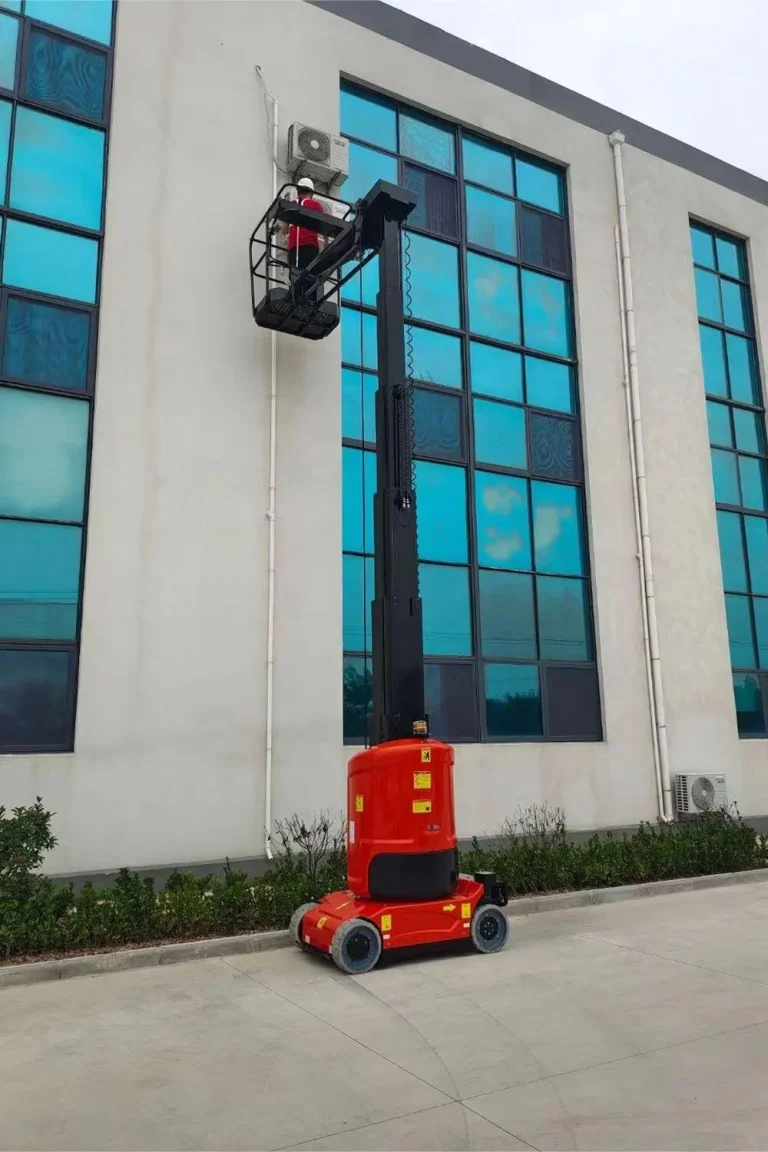

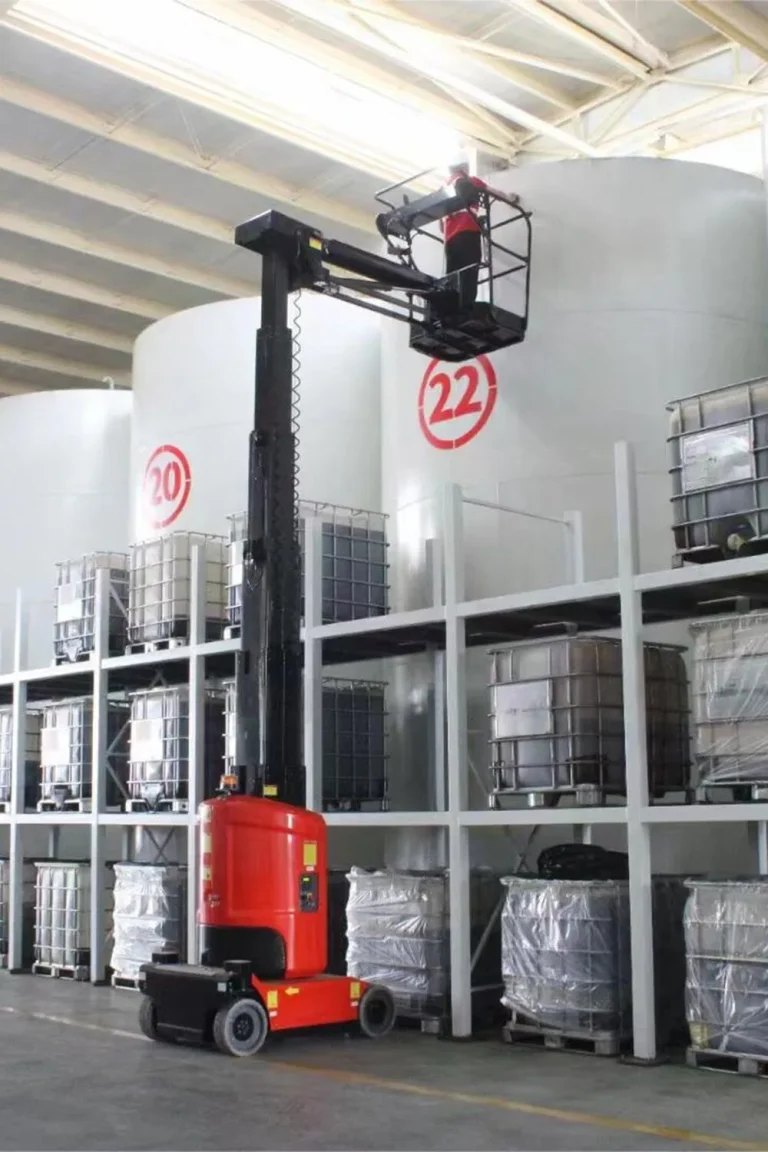

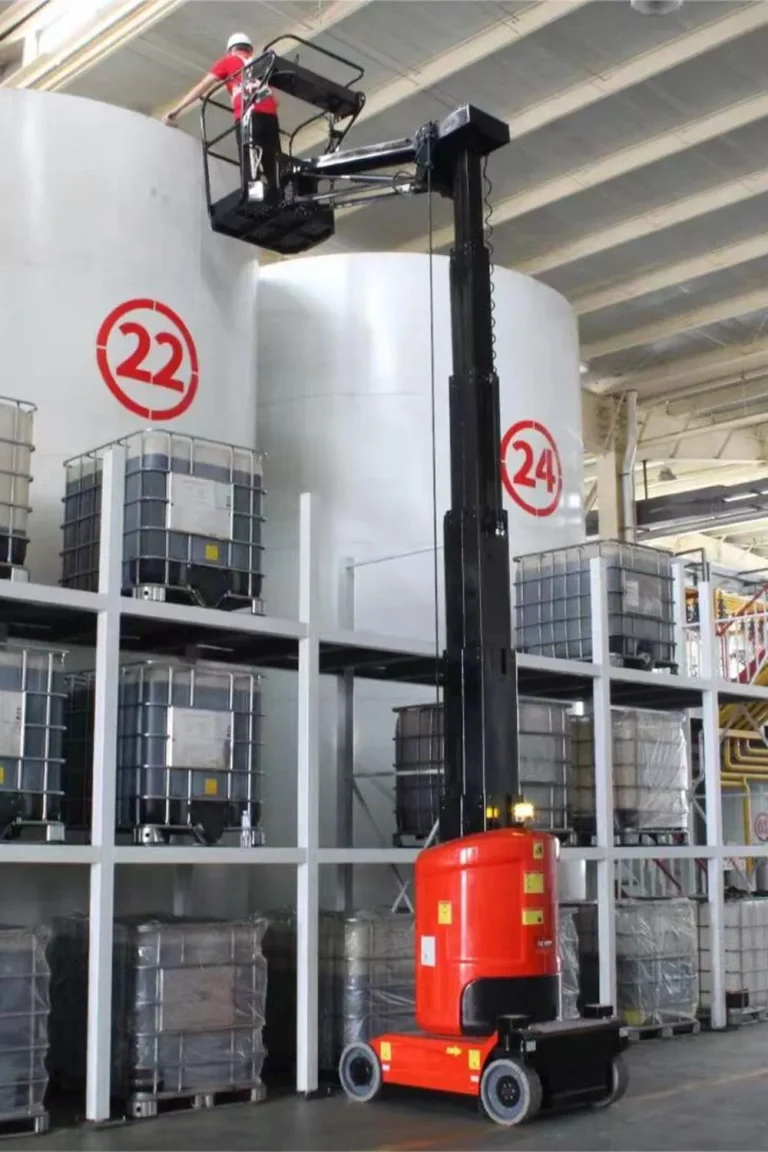

Driveable vertical mast lift can fit through doorways and in most passenger elevators, so it is ideal single man lift for indoor use, like hotel, station, bank, factory, airports, doing cleaning, installation and maintenance jobs.
Standard model list for reference
Highly recommended drivable mast boom lift models for the users
| Item | AWP3.6-6100 | AWP4.8-6100 | AWP6-6100 |
| Max. Working Height | 5.6m | 6.8m | 8m |
| Max. Platform Height | 3.6m | 4.8m | 6m |
| Loading Capacity | 227kg | 227kg | 159kg |
| Ext. Platform Capacity | 114kg | 114kg | 114kg |
| Overall Length | 1.36m | 1.36m | 1.36m |
| Overall Width | 0.76m | 0.76m | 0.81m |
| Overall Height | 1.7m | 1.98m | 1.98m |
| Platform Dimension | 1.28m×0.70m | 1.28m×0.70m | 1.28m×0.70m |
| Ext. Platform Length | 0.51m | 0.51m | 0.51m |
| Wheel Base | 1.04m | 1.04m | 1.04m |
| Inner Turning Radius | 0m | 0m | 0m |
| Outer Turning Radius | 1.4m | 1.4m | 1.4m |
| Travel Speed(Stowed) | 4km/h | 4km/h | 4km/h |
| Travel Speed(Raised) | 1.1km/h | 1.1km/h | 1.1km/h |
| Up/Down Speed | 31/32sec | 41.5/42sec | 52/53sec |
| Gradeability | 0.25 | 25% | 25% |
| Drive Tyres | Φ305×100mm | Φ305×100mm | Φ305×100mm |
| Drive Motors | 2×24VDC/0.5kW | 2×24VDC/0.5kW | 2×24VDC/0.5kW |
| Lifting Motor | 24VDC/1.2kW | 24VDC/1.2kW | 24VDC/1.2kW |
| Battery | 2×12V/100Ah | 2×12V/100Ah | 2×12V/100Ah |
| Charger | 24V/15A | 24V/15A | 24V/15A |
| Weight | 810kg | 980kg | 1060kg |
