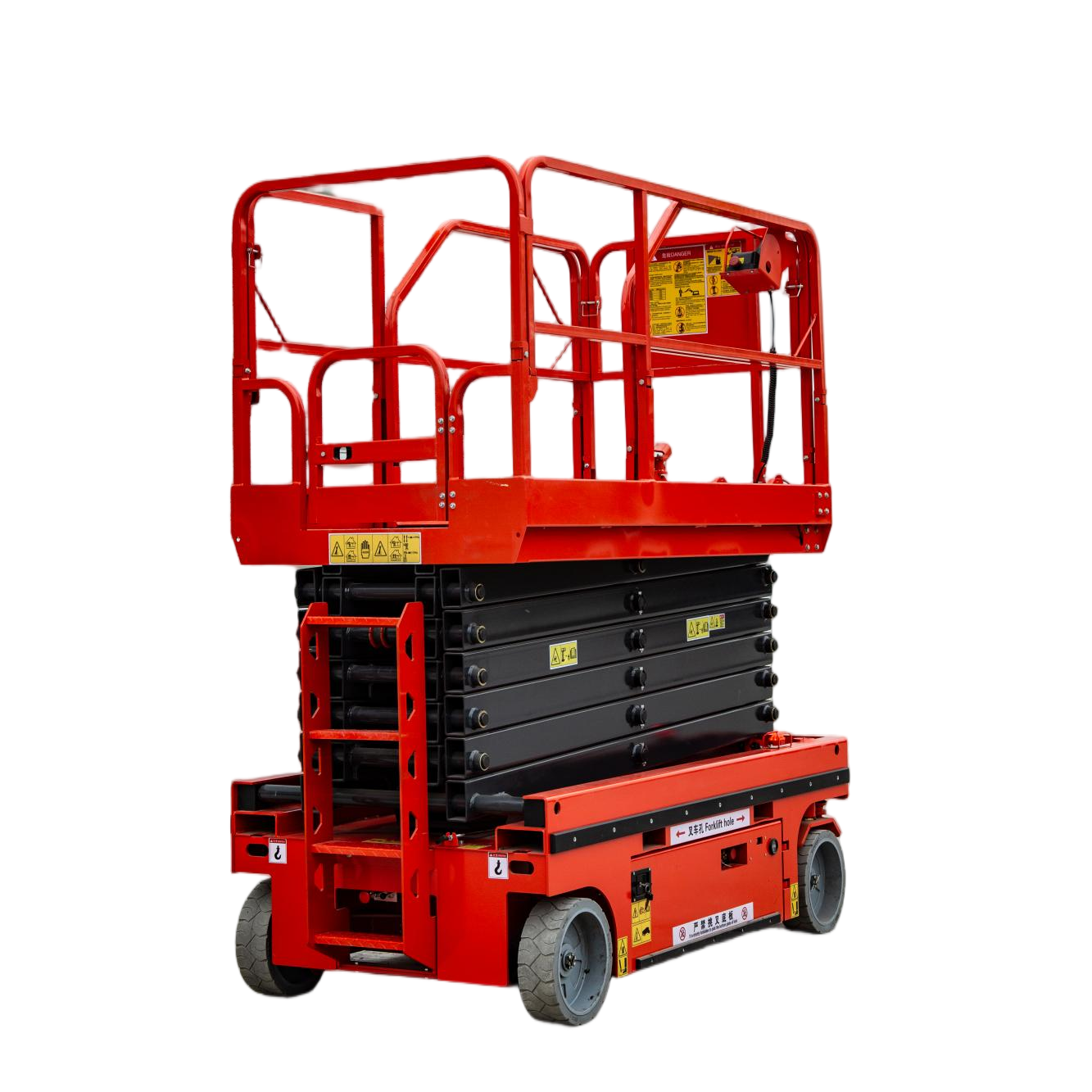

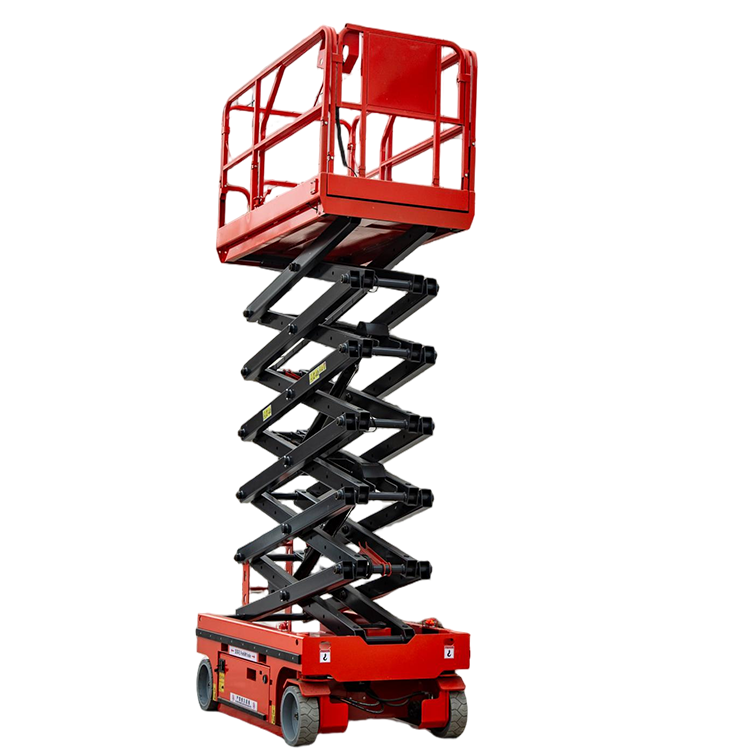

Self-propelled Scissor Lift
Hanslot Self-propelled Scissor Lift is a professional aerial work platform meticulously designed to deliver exceptional flexibility, efficiency, and safety for elevated operations across indoor and outdoor scenarios. Integrating advanced self-propelled technology with user-centric engineering, this series eliminates the cumbersome manual movement of traditional scissor lifts, addressing pain points such as low mobility, inefficient positioning, and high labor intensity—providing a reliable, time-saving solution for industries demanding seamless, precise high-altitude work.
Core Performance & Technical Advantages
The outstanding performance of the Hanslot Self-propelled Scissor Lift is supported by premium components, precision manufacturing, and innovative design, ensuring stable, consistent operation in diverse working environments, from smooth indoor floors to slightly uneven outdoor grounds.
1. Advanced Self-propelled System for Superior Mobility
Equipped with a high-efficiency self-propelled drive system, the Hanslot Self-propelled Scissor Lift enables flexible, independent movement without external traction, significantly enhancing operational efficiency. The intelligent variable-speed control allows operators to adjust travel speed smoothly (0.8-4km/h, varies by model) according to on-site needs, while the 360° in-place rotation capability and small turning radius (0m for compact models) ensure easy maneuvering in narrow spaces—such as workshops, shopping malls, and narrow construction aisles. Both wheeled (solid rubber tires for indoor, pneumatic tires for outdoor) and optional crawler configurations are available, adapting to different ground conditions and ensuring stable travel on slightly uneven surfaces.
2. Efficient Lifting System & Energy-saving Performance
The lift is equipped with a high-pressure hydraulic lifting system, featuring dual-cylinder synchronization technology that ensures stable, vibration-free lifting and lowering. The maximum working height ranges from 6m to 18m, with a load capacity of 200kg to 500kg (varies by model), capable of carrying multiple operators and tools simultaneously, improving work efficiency. Adopting a pure electric drive design (optional diesel-electric hybrid for outdoor heavy-duty scenarios), the lift uses a high-capacity lithium iron phosphate battery (48V/150Ah-48V/300Ah) to achieve zero emissions, ultra-low noise (≤65dB), and energy saving. A single charge supports 8-10 hours of continuous operation, and the fast-charging function (compatible with 220V/380V power supply) reduces downtime, ensuring uninterrupted work progress.
Comprehensive Safety Protection System
Safety is the core of Hanslot’s design philosophy, and the self-propelled scissor lift is equipped with a multi-layered safety protection system to fully protect operators and equipment. Key safety features include: automatic leveling system (real-time adjustment to ensure horizontal operation, tilt protection when angle exceeds 3°), emergency descent valve (manual descent in case of power failure), platform self-locking door (prevents accidental fall), overload protection (automatically stops lifting when exceeding load capacity), and anti-pinch safety device. The entire machine complies with international safety standards (EN 280, ANSI A92.2), and each unit undergoes strict safety testing before leaving the factory, ensuring reliable operation in high-altitude environments.
Standard Features
- Manual emergency lower system
- Multi-disc wet brakes
- Manual brake release
- Pothole protection
- Non-marking tires
- AC wiring to platform
- Tilt alarm
- Buzzer
- Hour meter
- Safety brackets
- Charger indicator
- Forklift pockets
- Diagnostic system
- Extended platform
- Maintenance-free battery
- Platform swing gate
- Dual flashing beacon
Foldable platform
Human-centric Design & Easy Maintenance
The lift adopts a user-friendly design to reduce operator fatigue and simplify operation. The ergonomic control panel (with both platform and ground control) features clear buttons and a digital display, allowing for one-key lifting, lowering, and movement, even for novice operators. The compact structure (folded height ≤2m) facilitates transportation and storage, and the detachable guardrail design makes it easy to pass through elevators and narrow doorways. For maintenance, the lift is equipped with a centralized maintenance cover and drawer-type battery compartment, enabling quick access to key components (hydraulic system, motor, battery) without disassembling the entire machine, reducing maintenance time and costs.
Key Technical Parameters
Hanslot offers a complete range of self-propelled scissor lift models to meet diverse operational needs. The core parameters of main models are as follows:
- Maximum Working Height: 6m - 18m
- Maximum Platform Height: 4m - 16m
- Load Capacity: 200kg - 500kg
- Travel Speed: 0.8km/h (elevated) - 4km/h (stowed)
- Lifting/Lowering Time: 15s/30s - 80s/55s
- Battery Capacity: 48V/150Ah - 48V/300Ah
- Overall Dimensions (L×W×H): 1.8m×1.2m×2.0m - 3.2m×1.8m×2.2m
- Drive Type: Electric self-propelled (optional diesel-electric hybrid)
Wide Application Scenarios
With its flexible mobility, stable performance, and multi-scenario adaptability, the Hanslot Self-propelled Scissor Lift is widely used in various industries, including:
- Indoor Operations: Warehouse maintenance, shopping mall decoration, factory equipment installation and maintenance, office building cleaning, theater stage arrangement.
- Outdoor Operations: Building exterior decoration, painting, street lamp repair, power line maintenance, billboard installation, stadium maintenance.
- Special Industries: Logistics and warehousing, construction engineering, municipal engineering, cultural and sports venues, manufacturing workshops.
Why Choose Hanslot Self-propelled Scissor Lift?
Hanslot has long been committed to the R&D and production of high-quality aerial work platforms, adhering to the principle of "quality first, customer-oriented". Each self-propelled scissor lift is manufactured with strict quality control, using premium components from well-known brands to ensure long service life and stable performance.
Compared with similar products, Hanslot Self-propelled Scissor Lift has obvious advantages in mobility, energy efficiency, safety, and operability—helping customers reduce labor costs, improve work efficiency, and ensure operational safety. Whether you need a compact model for indoor narrow spaces or a high-capacity model for outdoor heavy-duty operations, Hanslot can provide customized solutions tailored to your specific needs. Choose Hanslot, and let professional aerial work equipment empower your projects!
